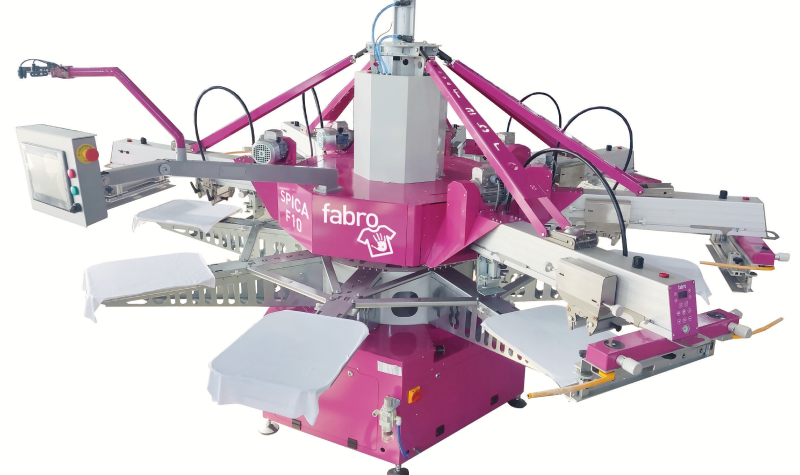

SPICA is an octopus type screen printing machine with ultra hi-tech servo-drive index system and AC drive motors delivers precise control and registration on your prints. The single high-lift feature of all printheads at once simplifies cleaning, loading and unloading of the screens and offers the setup the other equipments like ORYXFIRE and ORYXFLOCK under the printheads needed. It minimizes the air consumption
| Model | Stations | Max Colors | Flash Cure Connections | Max Print Size | Overall Size (m) | Max Power Consumption (kVA) | Air Consumption | Optional |
|---|---|---|---|---|---|---|---|---|
| F6 | 6 | 4 | 2 | 40x50 cm | 3.6 | 3 | 6-8 bar (0.6-0.8 MPa) | 4 Cylinders Squeegee Carriage |
| F8 | 8 | 6 | 3 | 40x50 cm | 3.8 | 3.5 | 6-8 bar (0.6-0.8 MPa) | 4 Cylinders Squeegee Carriage |
| F10 | 10 | 8 | 4 | 40x50 cm | 4 | 4 | 6-8 bar (0.6-0.8 MPa) | 4 Cylinders Squeegee Carriage |
